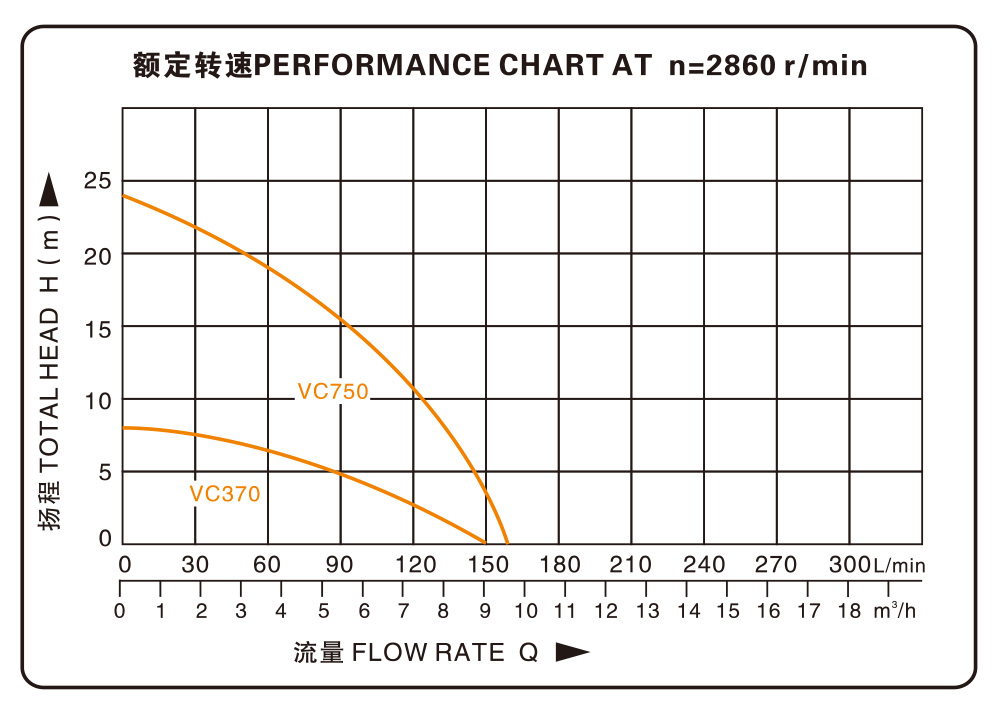

性能曲線 / Performance curve

用途與特點 / Function and Feature

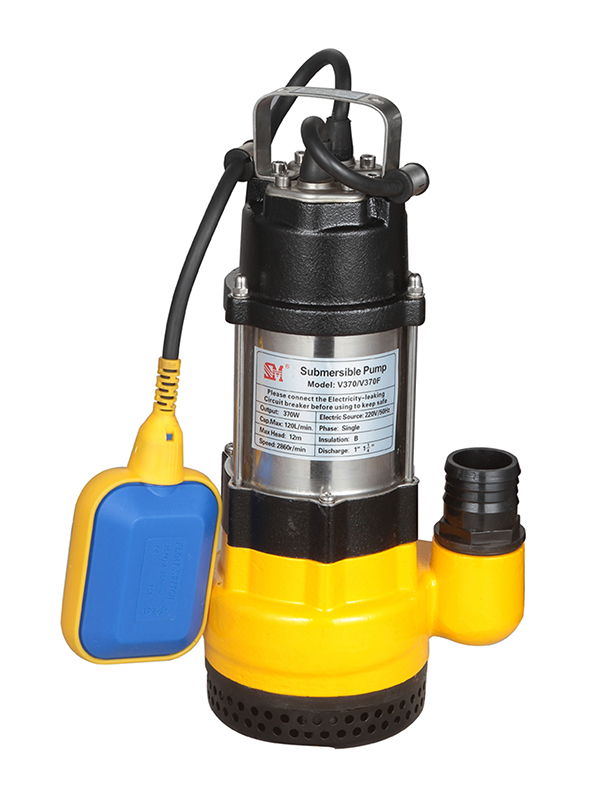

VC型污水潛水泵廣泛應用于農田、養殖、工礦企業、建筑工地等，具有流量大、體積小、重量輕、使用方便等特點。配上浮球開關后隨著液位的變化能實現自動控制啟停。電機內裝有保護器，遇到過熱或過流時會自動切斷電源，保證了泵在較惡劣的環境下運行的安全性和可靠性。( 可配三相電機)

使用條件 / Condition of usag

◎ 電泵潛入水下深度不超過5米;

◎ 水溫不超過40℃;

◎ 水的PH值為6.5-8.5;

◎ 水中固體顆粒直徑不大于0.2毫米。

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)

NO.	DESCRIPTION
1	Bolt
2	Stretching washer
3	Washer
4	Bolt
5	Washer
6	Handle
7	Nut
8	Protector
9	Cable presser
10	Washer
11	Screw
12	Bolt
13	"O" ring
14	Bolt
15	Flange
16	Cable
17	Cable protector
18	Capacitor cover
19	Capacitor
20	"O" ring
21	"O" ring
22	Spring washer
23	Screw
24	Washer
25	Line protector
26	Upper cover
27	Thermal protector
28	"O" ring

NO.	DESCRIPTION
29	Stator
30	Undulated washer
31	Bearing
32	Rotor
33	Key
34	Bearing
35	Bolt
36	Washer
37	Connection part
38	Mechanical seal
39	"O" ring
40	Lower cover
41	Screw
42	Washer
43	Washer
44	Screw
45	Oil seal
46	Impeller
47	Spring washer
48	Nut
49	Out-let connector
50	"O" ring
51	Pump casing
52	Nut
53	Bolt
54	Filter mesh
55	Nut

技術參數 / TECHNICAL DATA

Model 型號	Power 功率 (W)	Outlet Diameter 出水口徑 (mm)	Voltage 電壓 (V)	Max. Flow 最大流量 (L/min)	Max. Head 最高揚程 (m)	Weight 毛重 (kg)	Packing 包裝尺寸 (cm)
VC370(F)	370	40	220/380	150	8.5	10	18x19x40
